B16B-PHDSS
  • Share:

JST Sales America Inc. B16B-PHDSS

Manufacturer No:
B16B-PHDSS
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
B16B-PHDSS Datasheet
ECAD Model:
-
Description:

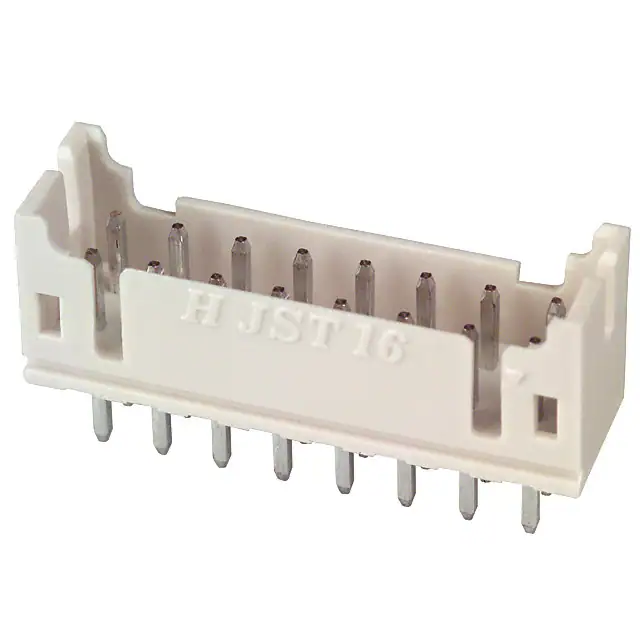

CONN HEADER VERT 16POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.114" (2.90mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.291" (7.40mm)
Insulation Height:0.256" (6.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):3A
Voltage Rating:250V
