B14B-PH-SM4-TBT(LF)(SN)
  • Share:

JST Sales America Inc. B14B-PH-SM4-TBT(LF)(SN)

Manufacturer No:
B14B-PH-SM4-TBT(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
B14B-PH-SM4-TBT(LF)(SN) Datasheet
ECAD Model:
-
Description:

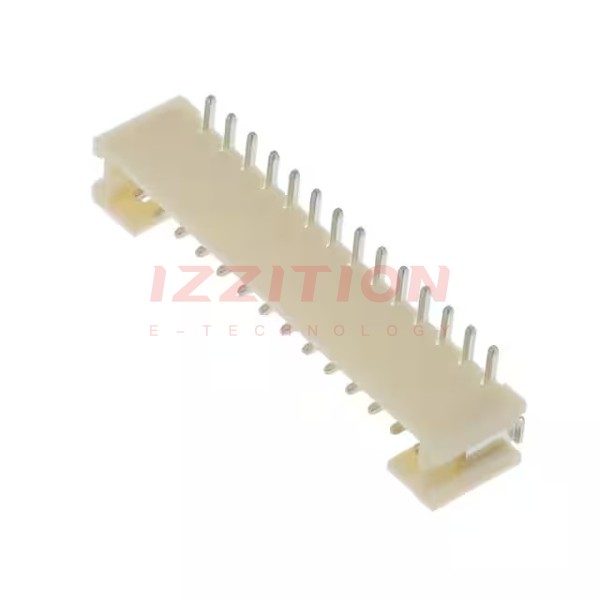

CONN HEADER SMD 14POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:14
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.130" (3.30mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.260" (6.60mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:Pick and Place, Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100V
0 Remaining View Similar

In Stock

$1.46
81

Please send RFQ , we will respond immediately.

Similar Products

Part Number B14B-PH-SM4-TBT(LF)(SN) B16B-PH-SM4-TBT(LF)(SN)   B15B-PH-SM4-TBT(LF)(SN)   B10B-PH-SM4-TBT(LF)(SN)   B11B-PH-SM4-TBT(LF)(SN)   B12B-PH-SM4-TBT(LF)(SN)   B14B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc.
Product Status Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 14 16 15 10 11 12 14
Number of Rows 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - -
Number of Positions Loaded All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm)
Contact Length - Post - - - - - - -
Overall Contact Length - - - - - - -
Insulation Height 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm)
Contact Shape Square Square Square Square Square Square Square
Contact Finish - Mating Tin Tin Tin Tin Tin Tin Tin
Contact Finish Thickness - Mating - - - - - - -
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T Polyamide (PA6T), Nylon 6T Polyamide (PA6T), Nylon 6T Polyamide (PA6T), Nylon 6T Polyamide (PA6T), Nylon 6T Polyamide (PA6T), Nylon 6T Polyamide (PA6T), Nylon 6T
Features Pick and Place, Solder Retention Pick and Place, Solder Retention Pick and Place, Solder Retention Pick and Place, Solder Retention Pick and Place, Solder Retention Pick and Place, Solder Retention Solder Retention
Operating Temperature -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C -25°C ~ 85°C
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Natural Natural Natural Natural Natural Natural Natural
Current Rating (Amps) 2A 2A 2A 2A 2A 2A 2A
Voltage Rating 100V 100V 100V 100V 100V 100V 100V
