B07B-ZESK-1D(T)(LF)(SN)(N)
  • Share:

JST Sales America Inc. B07B-ZESK-1D(T)(LF)(SN)(N)

Manufacturer No:
B07B-ZESK-1D(T)(LF)(SN)(N)
Manufacturer:
JST Sales America Inc.
Package:
Tray
Datasheet:
B07B-ZESK-1D(T)(LF)(SN)(N) Datasheet
ECAD Model:
-
Description:

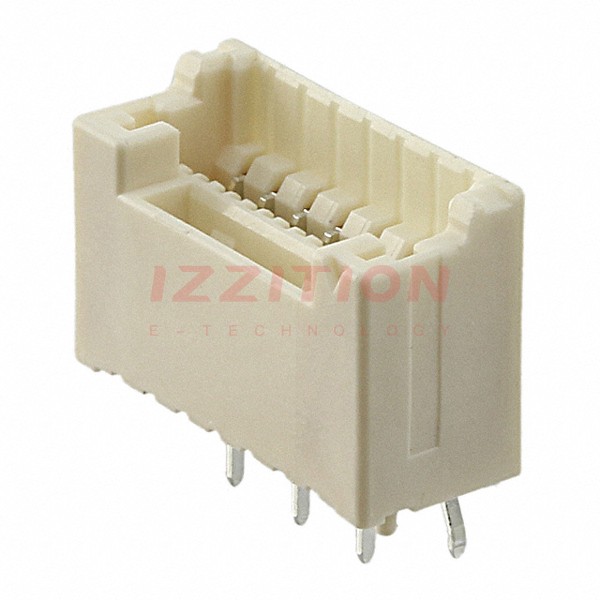

CONN HEADER VERT 7POS 1.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Outer Shroud Contact
Pitch - Mating:0.059" (1.50mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100V
