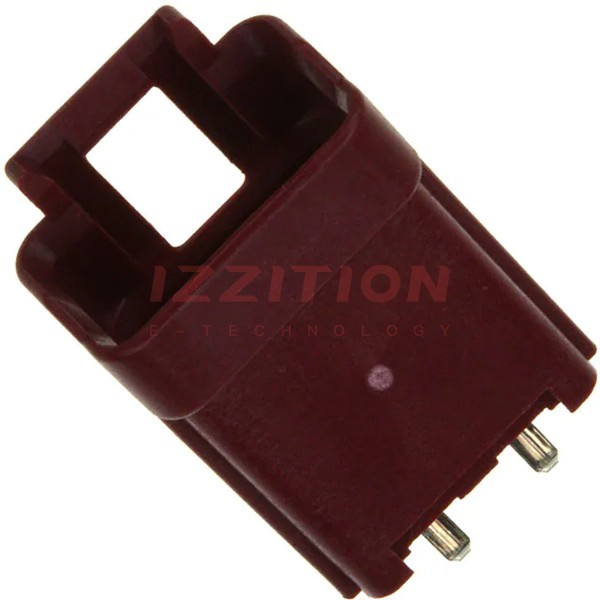

| Part Number | B02B-WPJRS-2(LF)(SN) | B03B-WPJRS-2(LF)(SN) |
|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Positions | 2 | 3 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.843" (21.41mm) | 0.843" (21.41mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Guide | Board Guide |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | Waterproof | Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Red | Red |
| Current Rating (Amps) | 7A | 7A |
| Voltage Rating | 300V | 300V |
