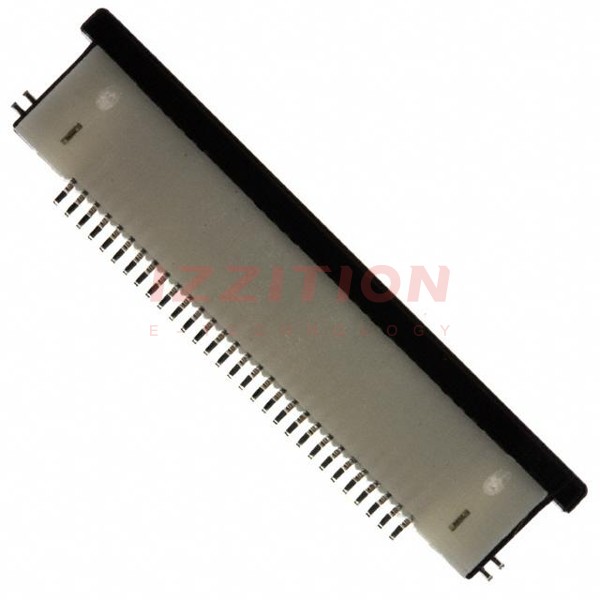

| Part Number | 30FLZ-RSM2-TB(LF)(SN) | 20FLZ-RSM2-TB(LF)(SN) |
|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom | Contacts, Bottom |
| Number of Positions | 30 | 20 |
| Pitch | 0.020" (0.50mm) | 0.020" (0.50mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm |
| Height Above Board | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Locking Feature | Slide Lock | Slide Lock |
| Cable End Type | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T | Polyamide (PA6T), Nylon 6T |
| Actuator Material | Polyamide (PA6T), Nylon 6T | Polyamide (PA6T), Nylon 6T |
| Features | Solder Retention, Zero Insertion Force (ZIF) | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V | 50V |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
