22FMN-BMT-A-TF(LF)(SN)
  • Share:

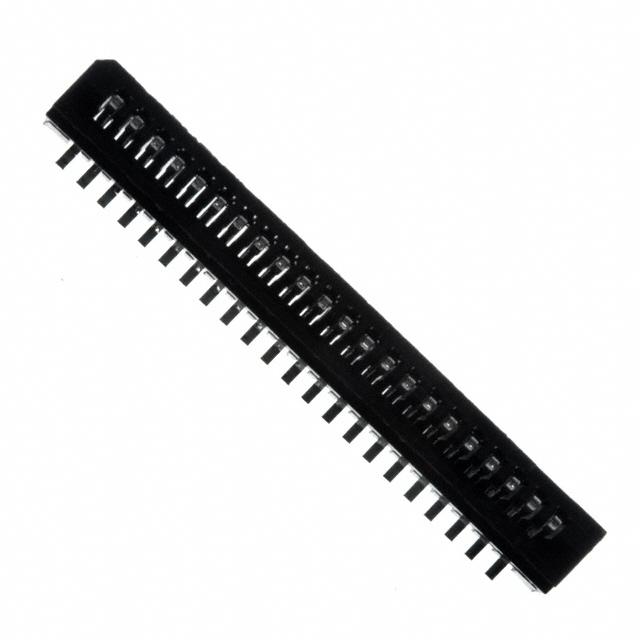

JST Sales America Inc. 22FMN-BMT-A-TF(LF)(SN)

Manufacturer No:
22FMN-BMT-A-TF(LF)(SN)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
22FMN-BMT-A-TF(LF)(SN) Datasheet
ECAD Model:
-
Description:
CONN FFC VERT 22POS 1.00MM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:22
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.201" (5.10mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyamide (PA6T), Nylon 6T
Actuator Material:-
Features:Low Insertion Force (LIF)
Voltage Rating:50V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$0.65
1,204

Please send RFQ , we will respond immediately.
