22FLZ-RSM2-TB(LF)(SN)(P)
  • Share:

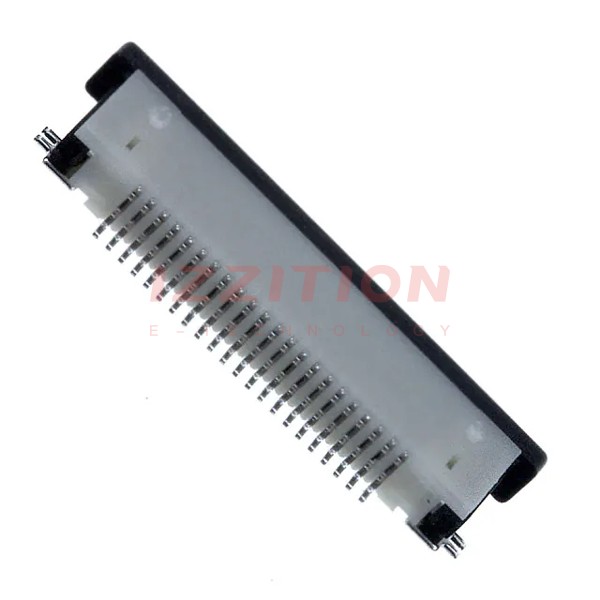

JST Sales America Inc. 22FLZ-RSM2-TB(LF)(SN)(P)

Manufacturer No:
22FLZ-RSM2-TB(LF)(SN)(P)
Manufacturer:
JST Sales America Inc.
Package:
Tape & Reel (TR)
Datasheet:
22FLZ-RSM2-TB(LF)(SN)(P) Datasheet
ECAD Model:
-
Description:
CONN FFC BOTTOM 22POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:22
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyamide (PA6T), Nylon 6T
Actuator Material:Polyamide (PA6T), Nylon 6T
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
92

Please send RFQ , we will respond immediately.
