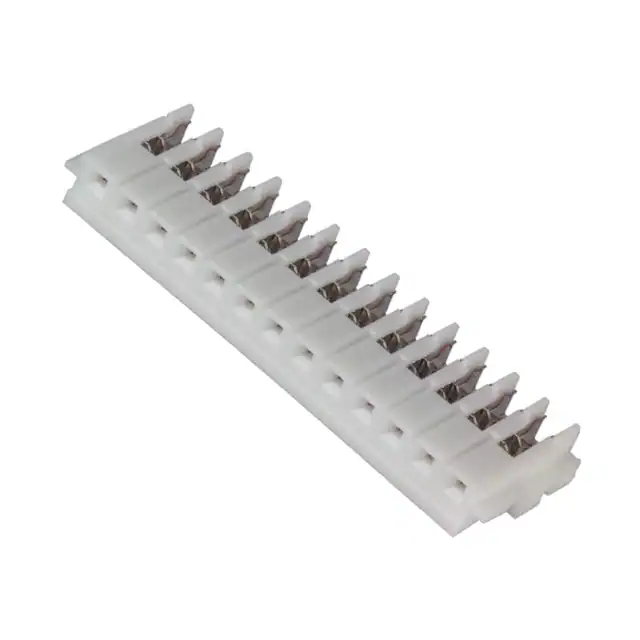

| Part Number | 13HR-6S-P-N | 10HR-6S-P-N | 11HR-6S-P-N | 12HR-6S-P-N |
|---|---|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 13 | 10 | 11 | 12 |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | 26 AWG | 26 AWG | 26 AWG | 26 AWG |
| Features | Closed End | Closed End | Closed End | Closed End |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - |
| Color | Natural | Natural | Natural | Natural |
