09HR-4K
  • Share:

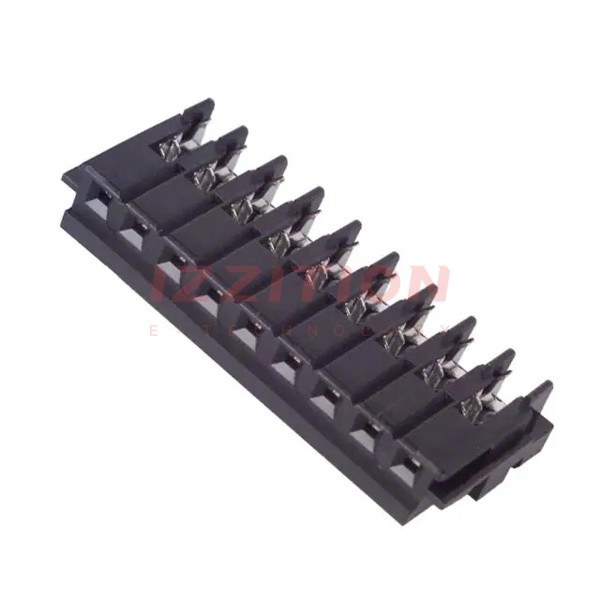

JST Sales America Inc. 09HR-4K

Manufacturer No:
09HR-4K
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
09HR-4K Datasheet
ECAD Model:
-
Description:
CONN RCPT 9P IDC 24AWG TIN-LEAD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:9
Pitch:0.098" (2.50mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Free Hanging (In-Line)
Fastening Type:Detent Lock
Cable Termination:IDC
Wire Type:Discrete
Wire Gauge:24 AWG
Features:Closed End
Contact Finish:Tin-Lead
Contact Finish Thickness:-
Color:Black
0 Remaining View Similar

In Stock

-
417

Please send RFQ , we will respond immediately.

Similar Products

Part Number 09HR-4K 04HR-4K   05HR-4K   06HR-4K   07HR-4K   08HR-4K
Manufacturer JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc.
Product Status Active Obsolete Obsolete Active Obsolete Active
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket Female Socket
Number of Positions 9 4 5 6 7 8
Pitch 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Number of Rows 1 1 1 1 1 1
Row Spacing - - - - - -
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Cable Termination IDC IDC IDC IDC IDC IDC
Wire Type Discrete Discrete Discrete Discrete Discrete Discrete
Wire Gauge 24 AWG 24 AWG 24 AWG 24 AWG 24 AWG 24 AWG
Features Closed End Closed End Closed End Closed End Closed End Closed End
Contact Finish Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - - - - - -
Color Black Black Black Black Black Black
