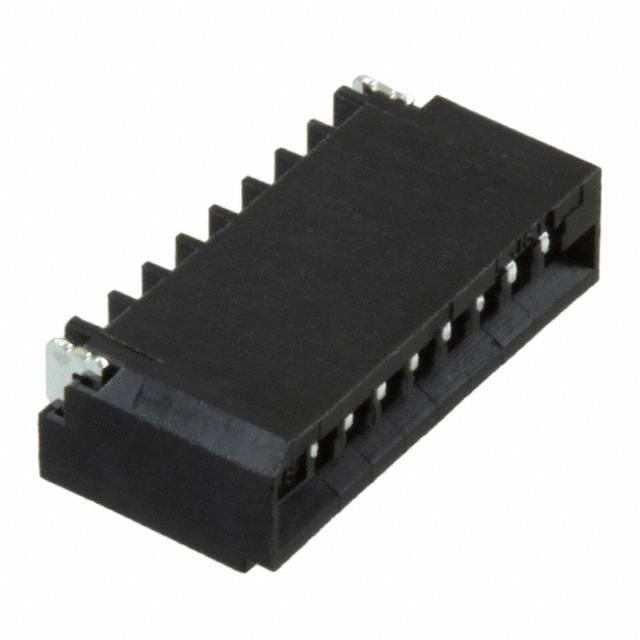

| Part Number | 08FMN-BMT-A-TF(LF)(SN) | 08FMN-SMT-A-TF(LF)(SN) | 04FMN-BMT-A-TF(LF)(SN) |
|---|---|---|---|
| Manufacturer | JST Sales America Inc. | JST Sales America Inc. | JST Sales America Inc. |
| Product Status | Active | Active | Active |
| Flat Flex Type | FFC | FFC | FFC |
| Mounting Type | Surface Mount | Surface Mount, Right Angle | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Top | Contacts, Vertical - 1 Sided |
| Number of Positions | 8 | 8 | 4 |
| Pitch | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Termination | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.201" (5.10mm) | 0.118" (3.00mm) | 0.201" (5.10mm) |
| Locking Feature | - | - | - |
| Cable End Type | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T | Polyamide (PA6T), Nylon 6T | Polyamide (PA6T), Nylon 6T |
| Actuator Material | - | - | - |
| Features | Low Insertion Force (LIF) | Low Insertion Force (LIF) | Low Insertion Force (LIF) |
| Voltage Rating | 50V | 50V | 50V |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
