02DB-8M(LF)
  • Share:

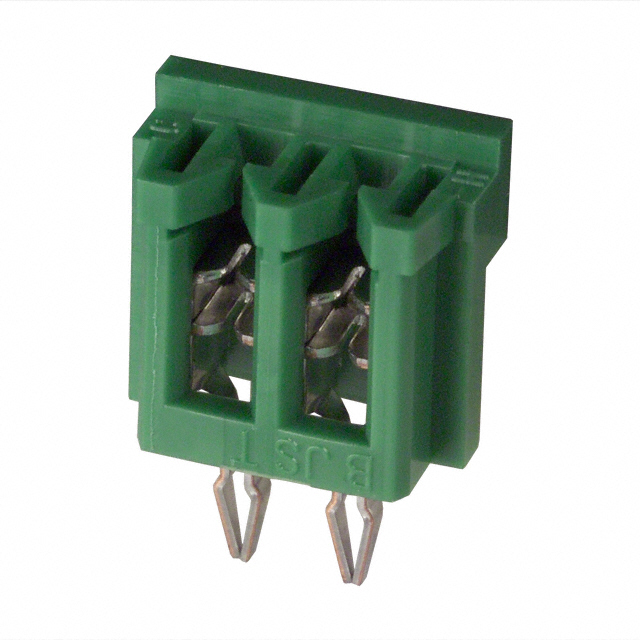

JST Sales America Inc. 02DB-8M(LF)

Manufacturer No:
02DB-8M(LF)
Manufacturer:
JST Sales America Inc.
Package:
Bulk
Datasheet:
02DB-8M(LF) Datasheet
ECAD Model:
-
Description:
CONN WIRE IDC 2POS 24-28AWG PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Individual Wires
Number of Positions:2
Cable Pitch:0.098" (2.50mm)
Board-Side Pitch:0.098" (2.50mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Through Hole, Press-Fit
Cable Termination:IDC
Wire Gauge:24-28 AWG, Stranded
Features:Closed End
Contact Finish:Tin-Lead
Contact Finish Thickness:-
Color:Green
0 Remaining View Similar

In Stock

$0.09
4,910

Please send RFQ , we will respond immediately.

Similar Products

Part Number 02DB-8M(LF) 03DB-8M(LF)   04DB-8M(LF)   05DB-8M(LF)   06DB-8M(LF)   08DB-8M(LF)
Manufacturer JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc.
Product Status Active Active Active Active Active Active
Connector Type Individual Wires Individual Wires Individual Wires Individual Wires Individual Wires Individual Wires
Number of Positions 2 3 4 5 6 8
Cable Pitch 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Board-Side Pitch 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Number of Rows 1 1 1 1 1 1
Row Spacing - - - - - -
Mounting Type Through Hole, Press-Fit Through Hole, Press-Fit Through Hole, Press-Fit Through Hole, Press-Fit Through Hole, Press-Fit Through Hole, Press-Fit
Cable Termination IDC IDC IDC IDC IDC IDC
Wire Gauge 24-28 AWG, Stranded 24-28 AWG, Stranded 24-28 AWG, Stranded 24-28 AWG, Stranded 24-28 AWG, Stranded 24-28 AWG, Stranded
Features Closed End Closed End Closed End Closed End Closed End Closed End
Contact Finish Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Finish Thickness - - - - - -
Color Green Green Green Green Green Green
