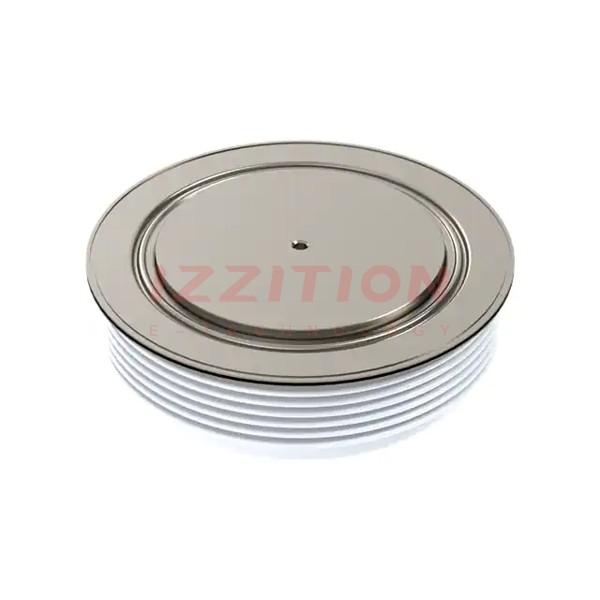

| Part Number | W6672TE350 | W6672TJ350 | W6672TE320 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1900 V | 1900 V | 1750 V |
| Current - Average Rectified (Io) | 6672A | 6672A | 6672A |
| Voltage - Forward (Vf) (Max) @ If | 1.37 V @ 5000 A | 1.37 V @ 5000 A | 1.37 V @ 5000 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 52 µs | 52 µs | 52 µs |
| Current - Reverse Leakage @ Vr | 100 mA @ 1900 V | 100 mA @ 1900 V | 100 mA @ 1750 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | TO-200AF | TO-200AF | TO-200AF |
| Supplier Device Package | - | - | - |
| Operating Temperature - Junction | -40°C ~ 160°C | -40°C ~ 160°C | -40°C ~ 160°C |
