IXYS-W2865HA680 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	6800 V
Current - Average Rectified (Io):	4825A (DC)
Voltage - Forward (Vf) (Max) @ If:	4.04 V @ 10000 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	53 µs
Current - Reverse Leakage @ Vr:	100 mA @ 6800 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis Mount
Package / Case:	DO-200AD
Supplier Device Package:	W121
Operating Temperature - Junction:	-40°C ~ 150°C

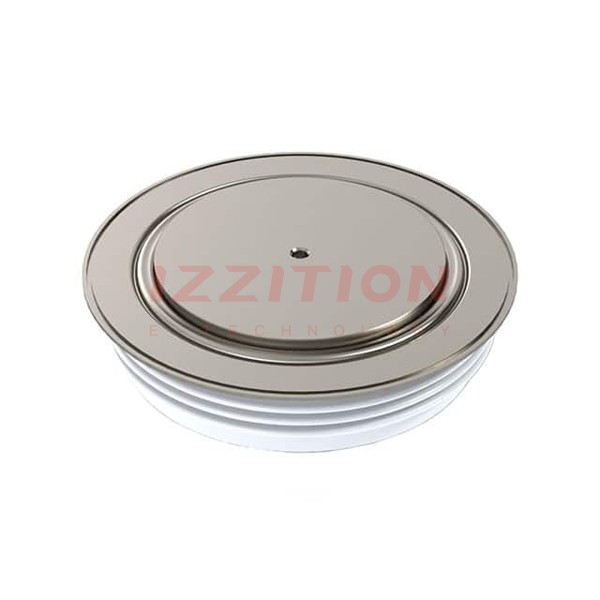

IXYS W2865HA680
