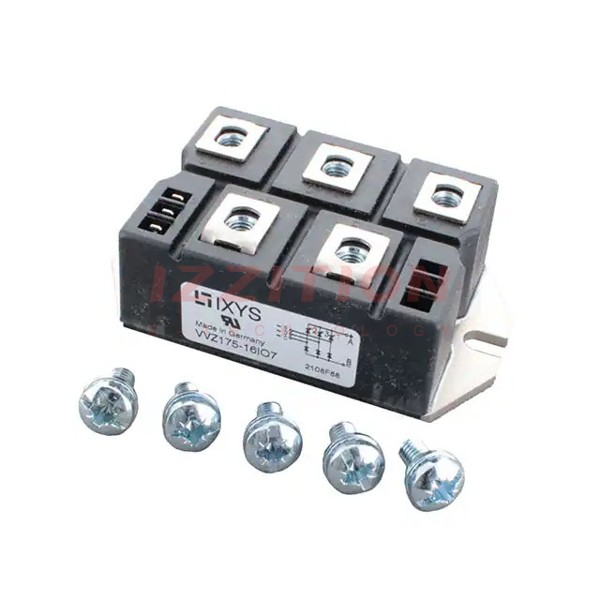

| Part Number | VVZ175-12IO7 | VVZ175-16IO7 | VVZ175-14IO7 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Structure | Bridge, 3-Phase - SCRs/Diodes | Bridge, 3-Phase - SCRs/Diodes | Bridge, 3-Phase - SCRs/Diodes |
| Number of SCRs, Diodes | 3 SCRs, 3 Diodes | 3 SCRs, 3 Diodes | 3 SCRs, 3 Diodes |
| Voltage - Off State | 1.2 kV | 1.6 kV | 1.4 kV |
| Current - On State (It (AV)) (Max) | 167 A | 167 A | 167 A |
| Current - On State (It (RMS)) (Max) | 89 A | 89 A | 89 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA | 100 mA | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A, 1600A | 1500A, 1600A | 1500A, 1600A |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA | 200 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | PWS-E2 | PWS-E2 | PWS-E2 |
