IXYS-VUO82-18NO7 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	VUO82-18NO7	VUO62-18NO7	VUO82-08NO7	VUO82-12NO7	VUO82-14NO7	VUO82-16NO7
Manufacturer	IXYS	IXYS	IXYS	IXYS	IXYS	IXYS
Product Status	Active	Active	Active	Active	Active	Active
Diode Type	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase	Three Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	1.8 kV	1.8 kV	800 V	1.2 kV	1.4 kV	1.6 kV
Current - Average Rectified (Io)	88 A	63 A	88 A	88 A	88 A	88 A
Voltage - Forward (Vf) (Max) @ If	1.6 V @ 150 A	1.8 V @ 150 A	1.6 V @ 150 A	1.6 V @ 150 A	1.6 V @ 150 A	1.6 V @ 150 A
Current - Reverse Leakage @ Vr	300 µA @ 1800 V	300 µA @ 1800 V	300 µA @ 800 V	300 µA @ 1200 V	300 µA @ 1400 V	300 µA @ 1600 V
Operating Temperature	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Package / Case	PWS-D	PWS-D	PWS-D	PWS-D	PWS-D	PWS-D
Supplier Device Package	PWS-D	PWS-D	PWS-D	PWS-D	PWS-D	PWS-D

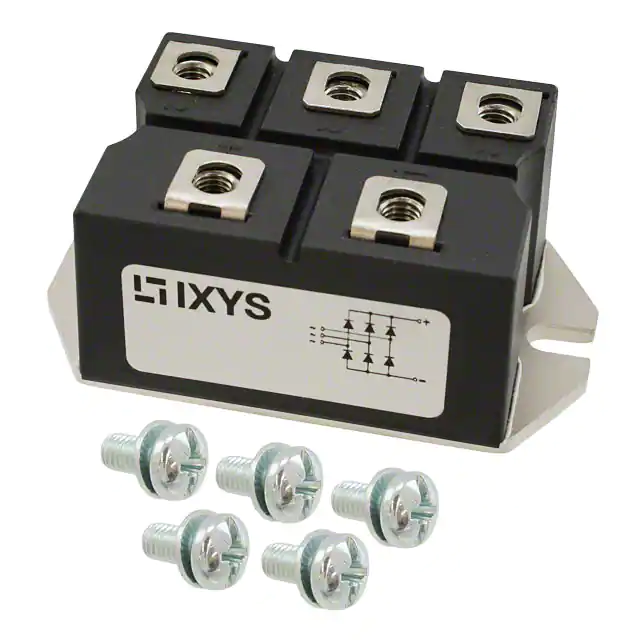

IXYS VUO82-18NO7

Diode Type:	Three Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	1.8 kV
Current - Average Rectified (Io):	88 A
Voltage - Forward (Vf) (Max) @ If:	1.6 V @ 150 A
Current - Reverse Leakage @ Vr:	300 µA @ 1800 V
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	PWS-D
Supplier Device Package:	PWS-D
