IXYS-VUO50-08NO3 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Diode Type:	Three Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	58 A
Voltage - Forward (Vf) (Max) @ If:	1.9 V @ 150 A
Current - Reverse Leakage @ Vr:	300 µA @ 800 V
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	FO-F-B
Supplier Device Package:	FO-F-B

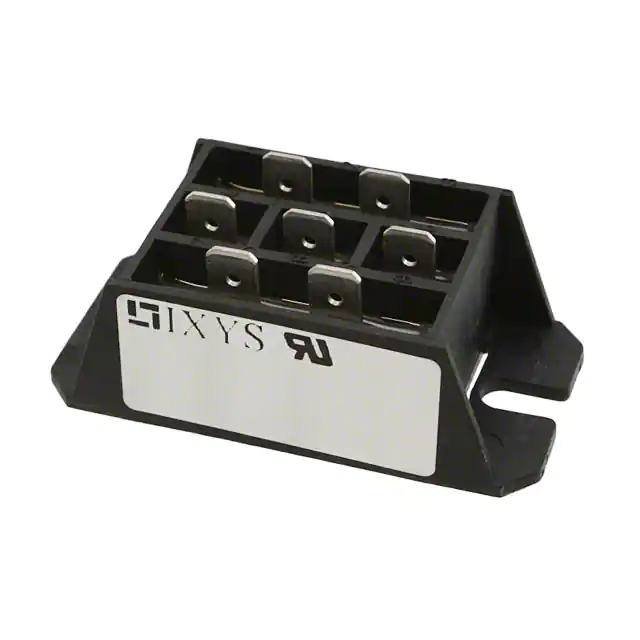

IXYS VUO50-08NO3
