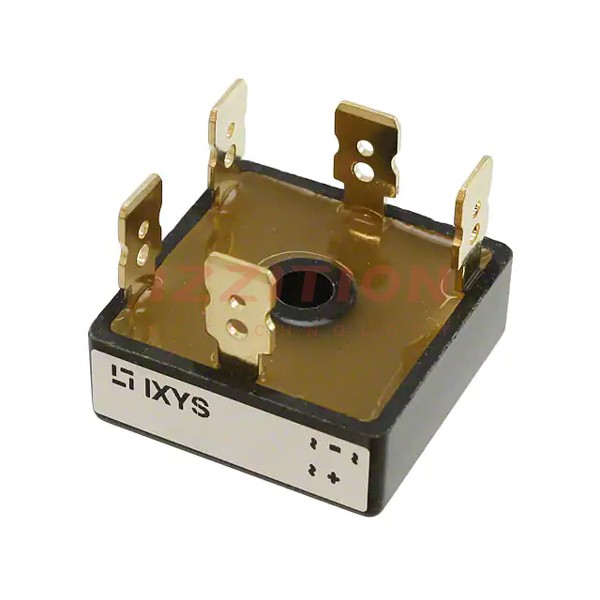

| Part Number | VUO36-18NO8 | VUO36-08NO8 | VUO36-12NO8 | VUO36-14NO8 | VUO36-16NO8 |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Three Phase | Three Phase | Three Phase | Three Phase | Three Phase |
| Technology | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1.8 kV | 800 V | 1.2 kV | 1.4 kV | 1.6 kV |
| Current - Average Rectified (Io) | 27 A | 27 A | 27 A | 27 A | 27 A |
| Voltage - Forward (Vf) (Max) @ If | 1.04 V @ 15 A | 1.04 V @ 15 A | 1.04 V @ 15 A | 1.04 V @ 15 A | 1.04 V @ 15 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 1800 V | 40 µA @ 800 V | 40 µA @ 1200 V | 40 µA @ 1400 V | 40 µA @ 1600 V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | QC Terminal | QC Terminal | QC Terminal | QC Terminal | QC Terminal |
| Package / Case | 5-Square, FO-B | 5-Square, FO-B | 5-Square, FO-B | 5-Square, FO-B | 5-Square, FO-B |
| Supplier Device Package | FO-B | FO-B | FO-B | FO-B | FO-B |
