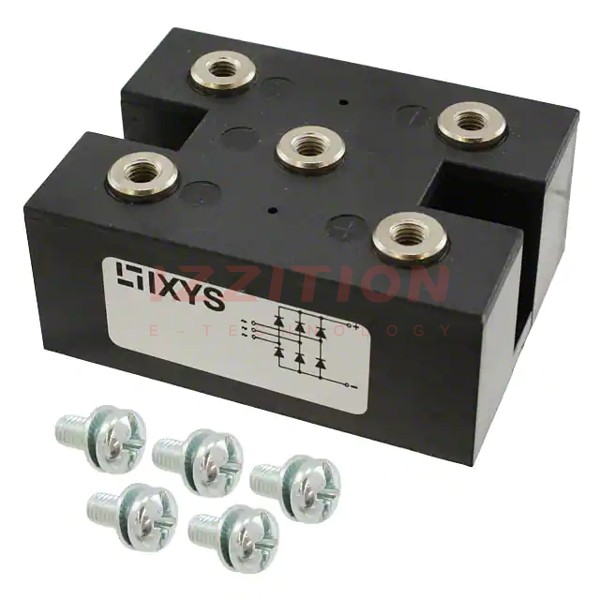

| Part Number | VUO192-16NO7 | VUO122-16NO7 | VUO162-16NO7 | VUO190-16NO7 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| Diode Type | Three Phase | Three Phase | Three Phase | Three Phase |
| Technology | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1.6 kV | 1.6 kV | 1.6 kV | 1.6 kV |
| Current - Average Rectified (Io) | 240 A | 117 A | 175 A | 248 A |
| Voltage - Forward (Vf) (Max) @ If | 1.07 V @ 80 A | 1.13 V @ 50 A | 1.16 V @ 60 A | 1.07 V @ 80 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 1600 V | 100 µA @ 1400 V | 100 µA @ 1600 V | 200 µA @ 1600 V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Module | ECO-PAC2 | Module | PWS-E |
| Supplier Device Package | PWS-E-Flat | ECO-PAC2 | PWS-E-Flat | PWS-E |
