IXYS-VMM300-03F - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	300V
Current - Continuous Drain (Id) @ 25°C:	290A
Rds On (Max) @ Id, Vgs:	8.6mOhm @ 145A, 10V
Vgs(th) (Max) @ Id:	4V @ 30mA
Gate Charge (Qg) (Max) @ Vgs:	1440nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	40000pF @ 25V
Power - Max:	1500W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Y3-DCB
Supplier Device Package:	Y3-DCB

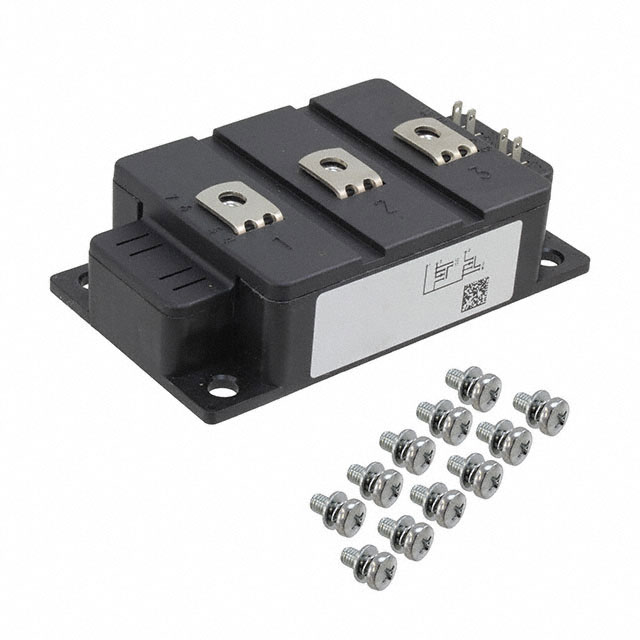

IXYS VMM300-03F
