IXYS-VMK165-007T - Transistors - FETs, MOSFETs - Arrays Product Specifications and Latest Quotes

FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	70V
Current - Continuous Drain (Id) @ 25°C:	165A
Rds On (Max) @ Id, Vgs:	7mOhm @ 82.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 8mA
Gate Charge (Qg) (Max) @ Vgs:	480nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	8800pF @ 25V
Power - Max:	390W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	TO-240AA
Supplier Device Package:	TO-240AA

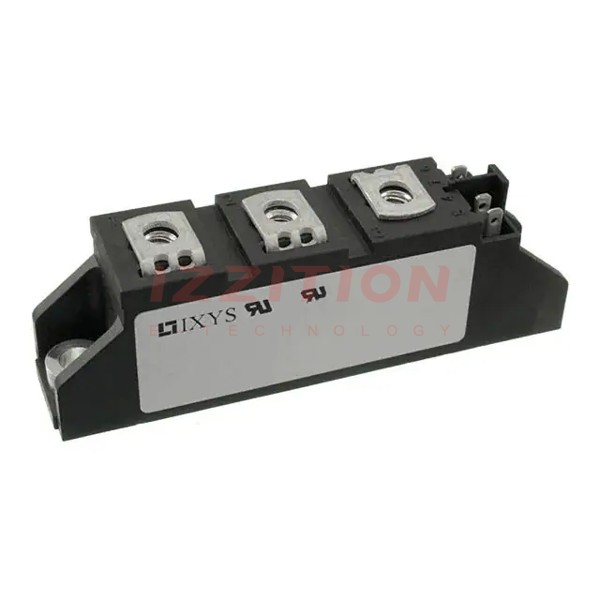

IXYS VMK165-007T
