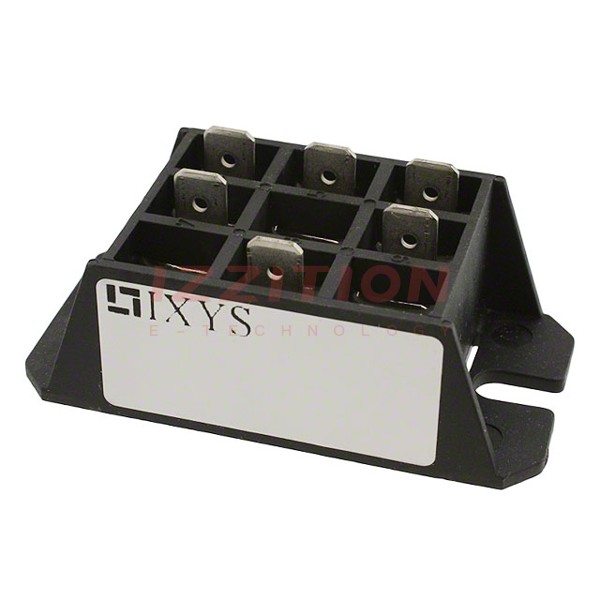

| Part Number | VHF28-14IO5 | VHF28-16IO5 | VHF28-12IO5 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Active |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) | Bridge, Single Phase - SCRs/Diodes (Layout 1) | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes | 2 SCRs, 2 Diodes | 2 SCRs, 2 Diodes |
| Voltage - Off State | 1.4 kV | 1.6 kV | 1.2 kV |
| Current - On State (It (AV)) (Max) | 28 A | 28 A | 28 A |
| Current - On State (It (RMS)) (Max) | - | - | - |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V | 1 V | 1 V |
| Current - Gate Trigger (Igt) (Max) | 65 mA | 65 mA | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 330A | 300A, 330A | 300A, 330A |
| Current - Hold (Ih) (Max) | 100 mA | 100 mA | 100 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | FO-F-A | X118 | FO-F-A |
