IXYS-VHF28-08IO5 - Thyristors - SCRs - Modules Product Specifications and Latest Quotes

Structure:	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes:	2 SCRs, 2 Diodes
Voltage - Off State:	800 V
Current - On State (It (AV)) (Max):	28 A
Current - On State (It (RMS)) (Max):	-
Voltage - Gate Trigger (Vgt) (Max):	1 V
Current - Gate Trigger (Igt) (Max):	65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	300A, 330A
Current - Hold (Ih) (Max):	100 mA
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	FO-F-A

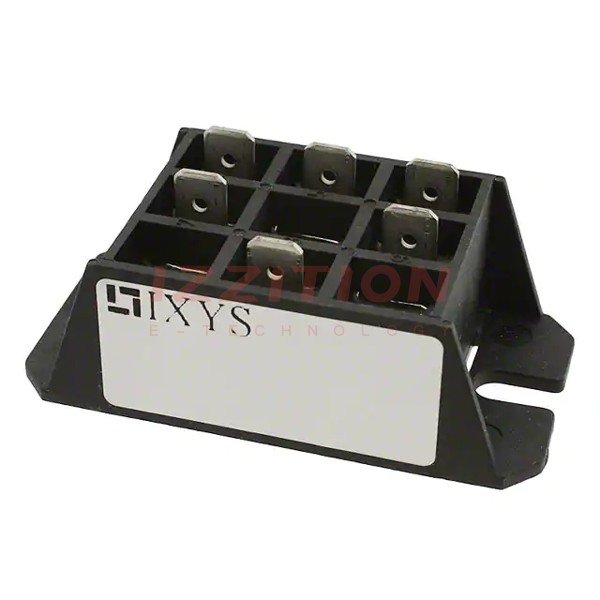

IXYS VHF28-08IO5
