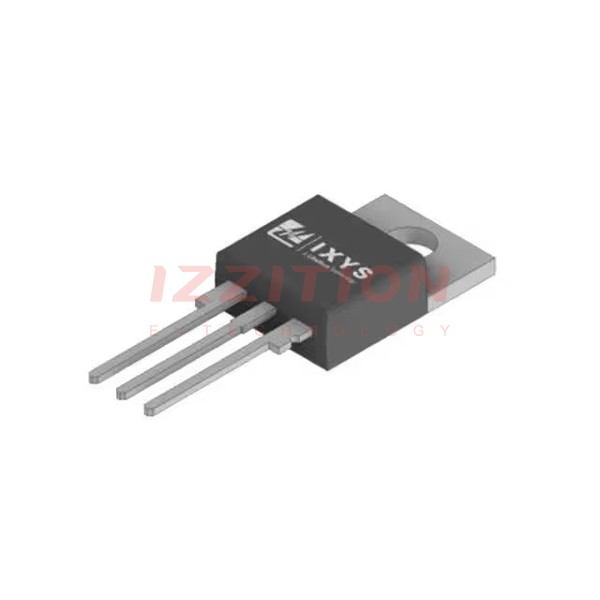

| Part Number | SV6050NA2TP | SV6050RA2TP | SV6050NA2RP |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Voltage - Off State | 600 V | 600 V | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA | 15 mA | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V | 1.6 V | 1.6 V |
| Current - On State (It (AV)) (Max) | 31.5 A | 31.5 A | 31.5 A |
| Current - On State (It (RMS)) (Max) | 50 A | 50 A | 50 A |
| Current - Hold (Ih) (Max) | 50 mA | 50 mA | 50 mA |
| Current - Off State (Max) | 5 µA | 5 µA | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 456A, 550A | 456A, 550A | 456A, 550A |
| SCR Type | Sensitive Gate | Sensitive Gate | Sensitive Gate |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-220-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 (D²Pak) | TO-220AB | TO-263 (D²Pak) |
