Please send RFQ , we will respond immediately.

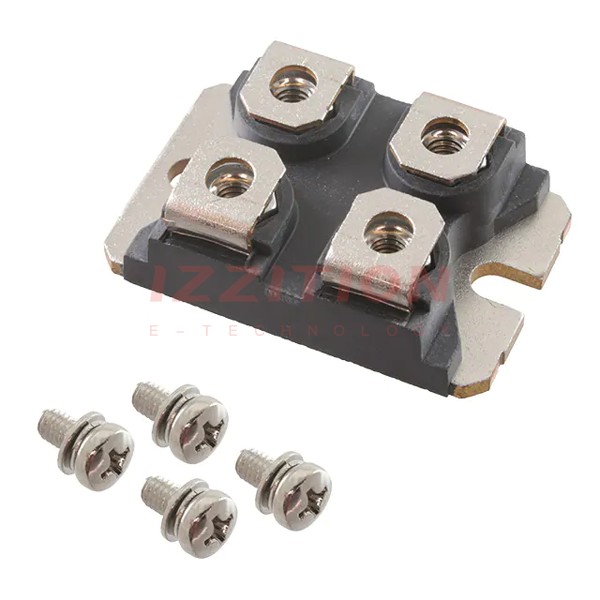

| Part Number | MMO62-16IO6 | MMO62-12IO6 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Structure | 1-Phase Controller - All SCRs | 1-Phase Controller - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.2 kV |
| Current - On State (It (AV)) (Max) | 25 A | 25 A |
| Current - On State (It (RMS)) (Max) | 39 A | 39 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 430A | 400A, 430A |
| Current - Hold (Ih) (Max) | 100 mA | 100 mA |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
