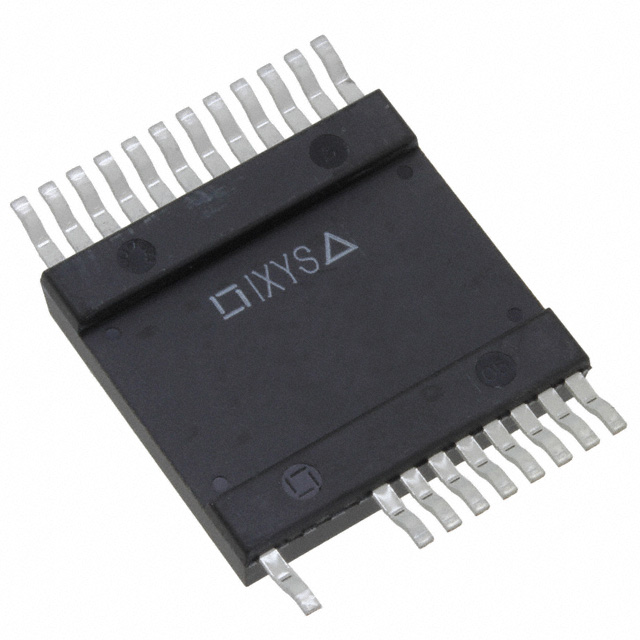

| Part Number | MMIX1X200N60B3H1 | MMIX1X100N60B3H1 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 175 A | 145 A |
| Current - Collector Pulsed (Icm) | 1000 A | 440 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 100A | 1.8V @ 15V, 70A |
| Power - Max | 520 W | 400 W |
| Switching Energy | 2.85mJ (on), 2.9mJ (off) | 1.9mJ (on), 2mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 315 nC | 143 nC |
| Td (on/off) @ 25°C | 48ns/160ns | 30ns/120ns |
| Test Condition | 360V, 100A, 1Ohm, 15V | 360V, 70A, 2Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns | 140 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 24-PowerSMD, 21 Leads | 24-PowerSMD, 21 Leads |
| Supplier Device Package | 24-SMPD | 24-SMPD |
