IXYS-MIXA61H1200ED - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	PT
Configuration:	Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	85 A
Power - Max:	290 W
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 55A
Current - Collector Cutoff (Max):	500 µA
Input Capacitance (Cies) @ Vce:	-
Input:	Standard
NTC Thermistor:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	E2
Supplier Device Package:	E2

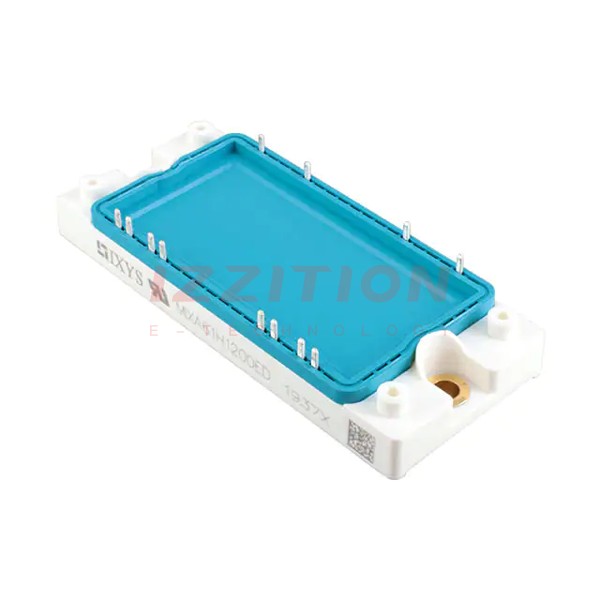

IXYS MIXA61H1200ED
