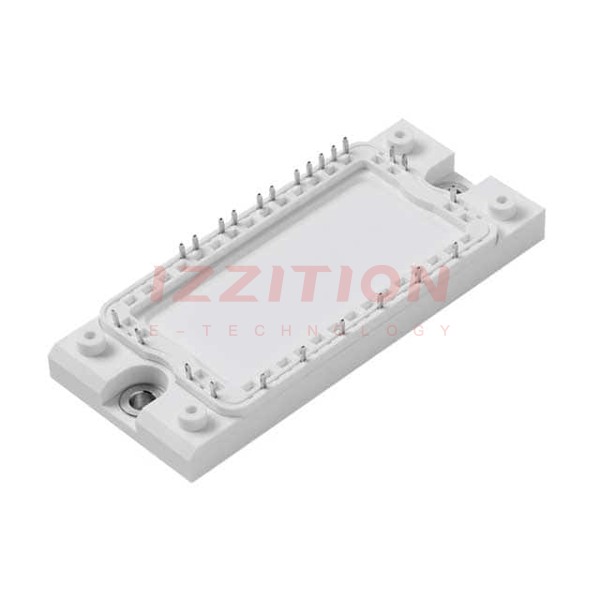

| Part Number | MIXA40WB1200TED | MIXA20WB1200TED |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | PT | PT |
| Configuration | Three Phase Inverter with Brake | Three Phase Inverter with Brake |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 60 A | 28 A |
| Power - Max | 195 W | 100 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A | 2.1V @ 15V, 16A |
| Current - Collector Cutoff (Max) | 2.1 mA | 1.5 mA |
| Input Capacitance (Cies) @ Vce | - | - |
| Input | Three Phase Bridge Rectifier | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | E2 | E2 |
| Supplier Device Package | E2 | E2 |
