IXYS-MIXA300PF1200TSF - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	PT
Configuration:	Half Bridge
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	465 A
Power - Max:	1500 W
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 300A
Current - Collector Cutoff (Max):	300 µA
Input Capacitance (Cies) @ Vce:	-
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	Module

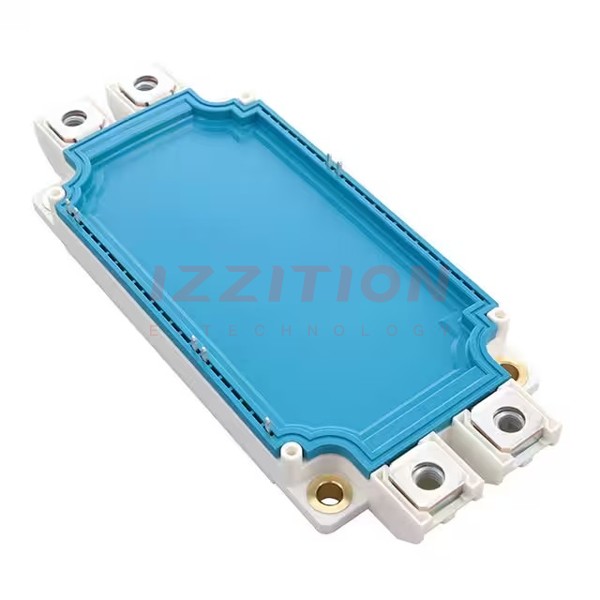

IXYS MIXA300PF1200TSF
