IXYS-MEO550-02DA - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	582A
Voltage - Forward (Vf) (Max) @ If:	1.25 V @ 520 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	200 ns
Current - Reverse Leakage @ Vr:	5 mA @ 200 V
Capacitance @ Vr, F:	-
Mounting Type:	Chassis Mount
Package / Case:	Y4-M6
Supplier Device Package:	Y4-M6
Operating Temperature - Junction:	-40°C ~ 150°C

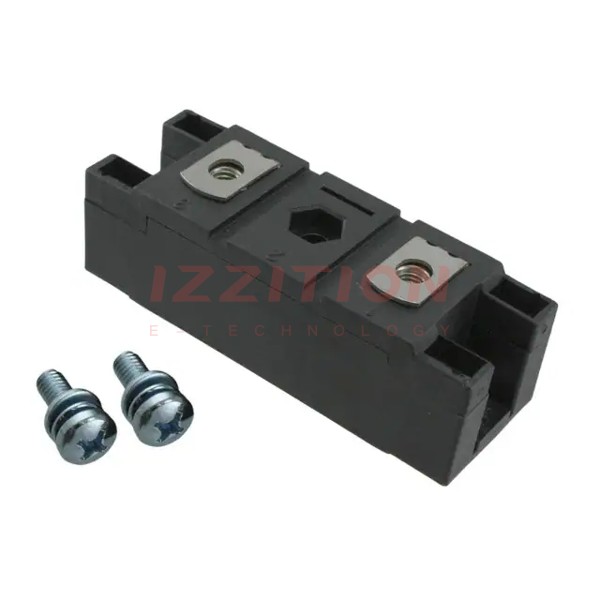

IXYS MEO550-02DA
