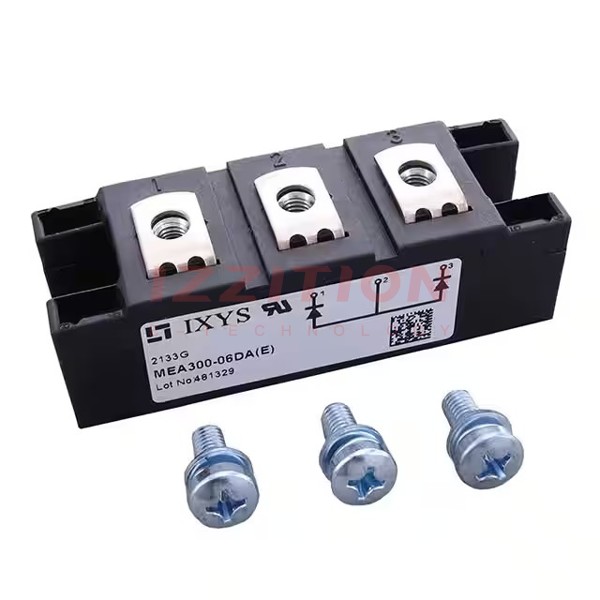

| Part Number | MEA300-06DA | MEE300-06DA | MEK300-06DA |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Anode | 1 Pair Series Connection | 1 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) (per Diode) | 304A | 304A | 304A |
| Voltage - Forward (Vf) (Max) @ If | 1.36 V @ 260 A | 1.36 V @ 260 A | 1.36 V @ 260 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 300 ns | 300 ns | 300 ns |
| Current - Reverse Leakage @ Vr | 12 mA @ 600 V | 12 mA @ 600 V | 12 mA @ 600 V |
| Operating Temperature - Junction | - | - | - |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Y4-M6 | Y4-M6 | Y4-M6 |
| Supplier Device Package | Y4-M6 | Y4-M6 | Y4-M6 |
