IXYS-MDD312-16N1 - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Series Connection
Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1600 V
Current - Average Rectified (Io) (per Diode):	310A
Voltage - Forward (Vf) (Max) @ If:	1.32 V @ 600 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	30 mA @ 1600 V
Operating Temperature - Junction:	-
Mounting Type:	Chassis Mount
Package / Case:	Y1-CU
Supplier Device Package:	Y1-CU

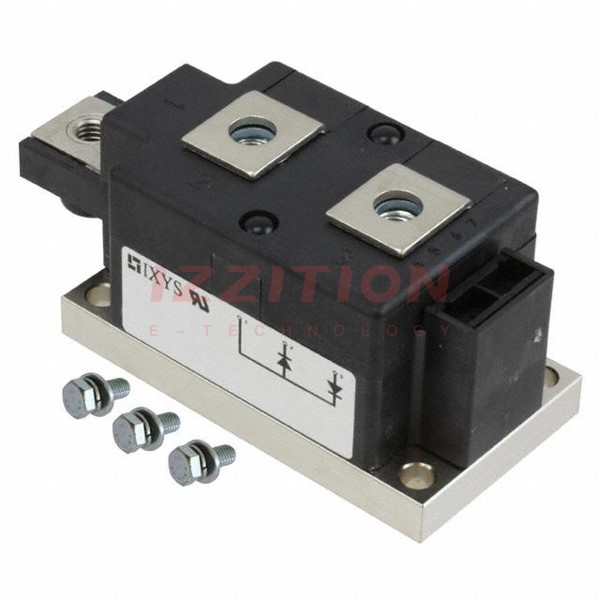

IXYS MDD312-16N1
