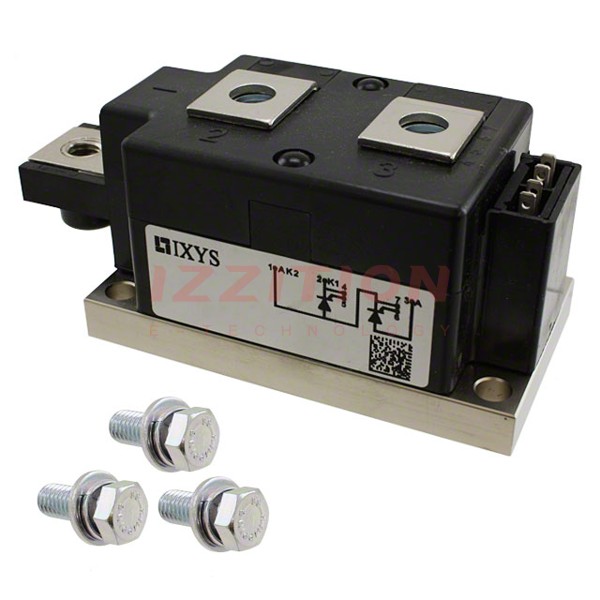

| Part Number | MCO600-20IO1 | MCO600-22IO1 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Structure | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR |
| Voltage - Off State | 2 kV | 2.2 kV |
| Current - On State (It (AV)) (Max) | 600 A | 600 A |
| Current - On State (It (RMS)) (Max) | 928 A | 928 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 15000A, 16000A | 15000A, 16000A |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Y1-CU | Y1-CU |
