Please send RFQ , we will respond immediately.

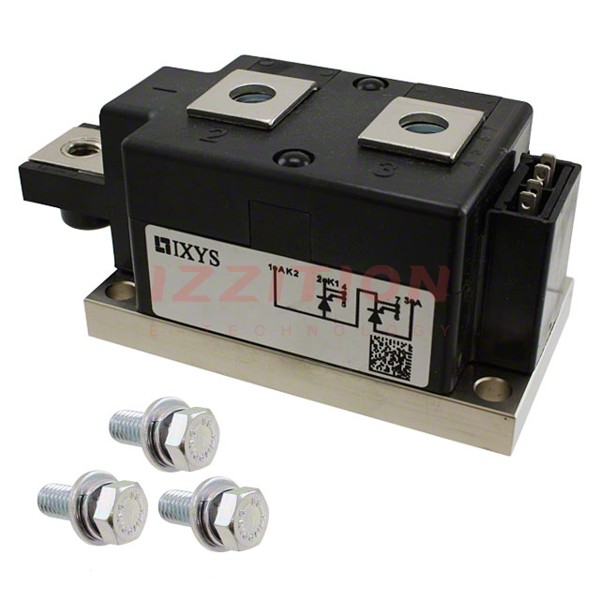

| Part Number | MCO600-16IO1 | MCO600-18IO1 | MCO100-16IO1 | MCO500-16IO1 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| Structure | Single | Single | Single | Single |
| Number of SCRs, Diodes | 1 SCR | 1 SCR | 1 SCR | 1 SCR |
| Voltage - Off State | 1.6 kV | 1.8 kV | 1.6 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 600 A | 600 A | 99 A | 560 A |
| Current - On State (It (RMS)) (Max) | 928 A | 928 A | 156 A | 880 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 1.5 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 300 mA | 300 mA | 100 mA | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 15000A, 16000A | 15000A, 16000A | 1400A, 1500A | 17000A, 16000A |
| Current - Hold (Ih) (Max) | 300 mA | 300 mA | 200 mA | 300 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Y1-CU | Y1-CU | SOT-227-4, miniBLOC | Y1-CU |
