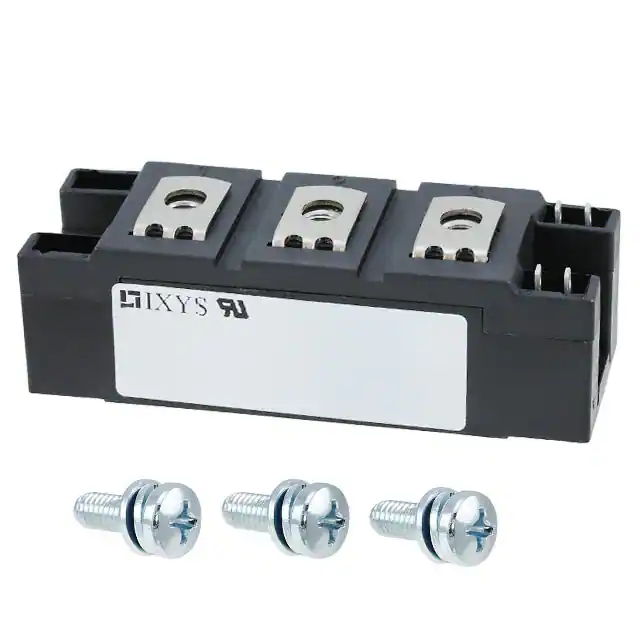

| Part Number | MCNA150P2200YA | MCNA180P2200YA |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs |
| Voltage - Off State | 2.2 kV | 2.2 kV |
| Current - On State (It (AV)) (Max) | 150 A | 180 A |
| Current - On State (It (RMS)) (Max) | 235 A | 280 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 4300A, 4650A | 5400A, 5830A |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Y4-M6 | Y4-M6 |
