IXYS-MCNA120UI2200TED - Thyristors - SCRs - Modules Product Specifications and Latest Quotes

Structure:	Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode
Number of SCRs, Diodes:	3 SCRs, 3 Diodes
Voltage - Off State:	2.2 kV
Current - On State (It (AV)) (Max):	-
Current - On State (It (RMS)) (Max):	-
Voltage - Gate Trigger (Vgt) (Max):	1.4 V
Current - Gate Trigger (Igt) (Max):	70 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	500A, 540A
Current - Hold (Ih) (Max):	100 mA
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	E2

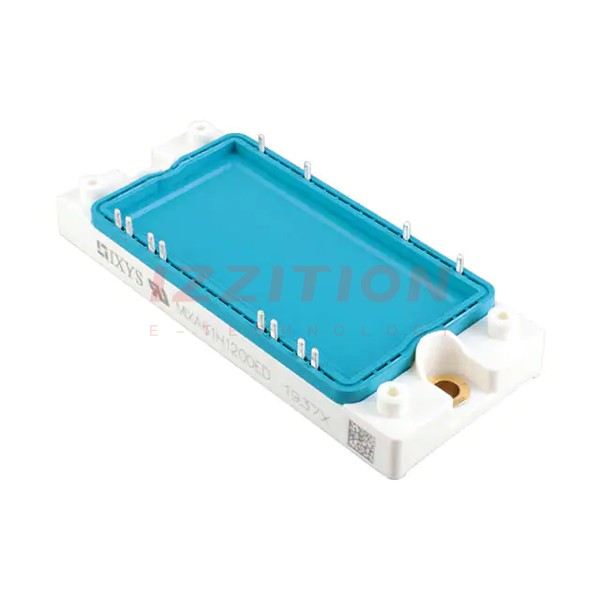

IXYS MCNA120UI2200TED
