Please send RFQ , we will respond immediately.

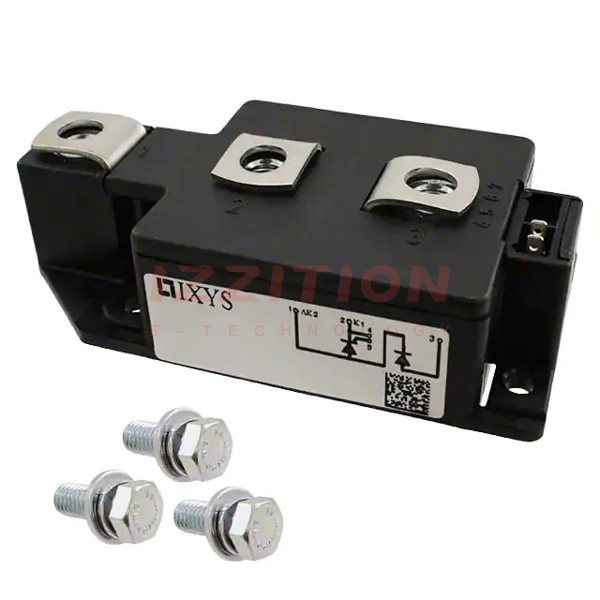

| Part Number | MCMA260PD1600YB | MCMA260PD1800YB |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode |
| Voltage - Off State | 1.6 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | 260 A | 260 A |
| Current - On State (It (RMS)) (Max) | 408 A | 408 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8300A, 8970A | 8300A, 8970A |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Y4 | Y4-M6 |
