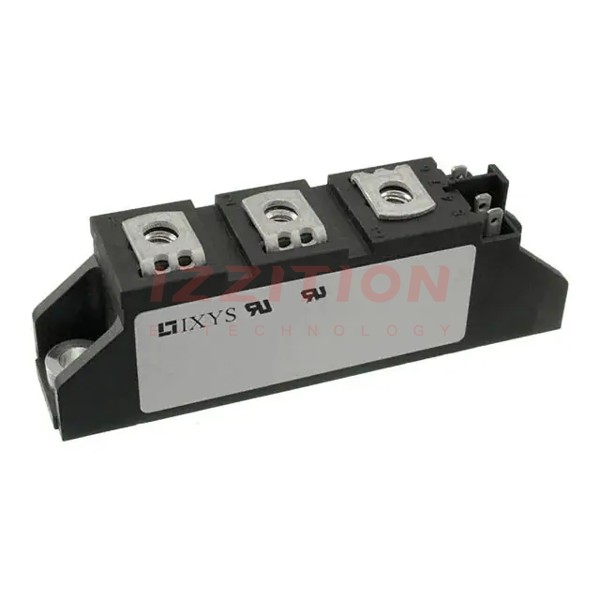

| Part Number | MCD56-12IO1B | MCD56-16IO1B | MCD56-12IO8B | MCD56-14IO1B | MCD56-18IO1B | MCC56-12IO1B | MCD26-12IO1B |
|---|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - SCR/Diode | Series Connection - All SCRs | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 1 SCR, 1 Diode | 2 SCRs | 1 SCR, 1 Diode |
| Voltage - Off State | 1.2 kV | 1.6 kV | 1.2 kV | 1.4 kV | 1.8 kV | 1.2 kV | 1.2 kV |
| Current - On State (It (AV)) (Max) | 64 A | 64 A | 64 A | 64 A | 64 A | 64 A | 32 A |
| Current - On State (It (RMS)) (Max) | 100 A | 100 A | 100 A | 100 A | 100 A | 100 A | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A, 1600A | 1500A, 1600A | 1500A, 1600A | 1500A, 1600A | 1500A, 1600A | 1500A, 1600A | 520A, 560A |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | TO-240AA | TO-240AA | TO-240AA | TO-240AA | TO-240AA | TO-240AA | TO-240AA |
