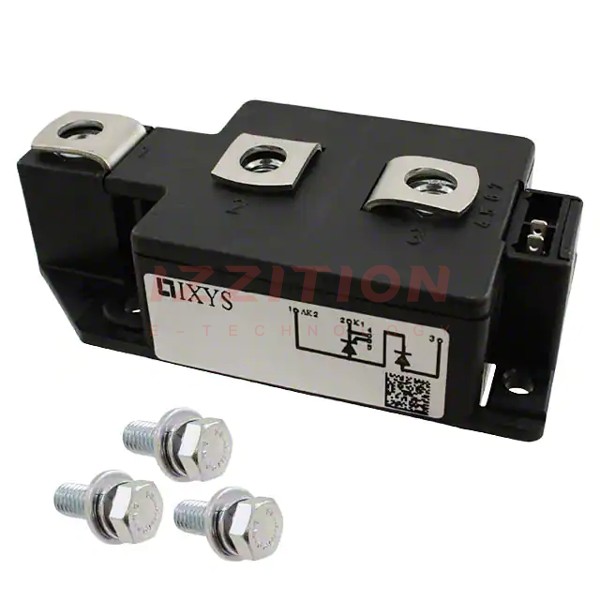

| Part Number | MCD310-22IO1 | MCD310-12IO1 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Structure | Series Connection - SCR/Diode | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode | 1 SCR, 1 Diode |
| Voltage - Off State | 2.2 kV | 1.2 kV |
| Current - On State (It (AV)) (Max) | 320 A | 320 A |
| Current - On State (It (RMS)) (Max) | 500 A | 500 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9200A, 9800A | 9200A, 9800A |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Y2-DCB | Y2-DCB |
