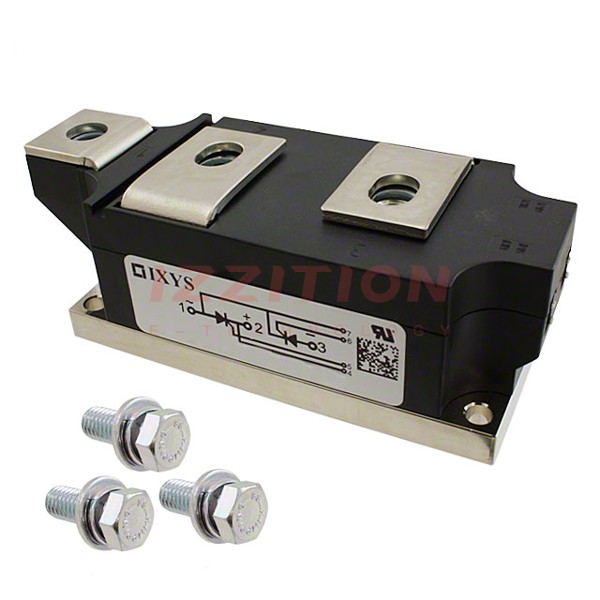

| Part Number | MCC501-16IO2 | MCC501-18IO2 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Obsolete |
| Structure | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.8 kV |
| Current - On State (It (AV)) (Max) | - | - |
| Current - On State (It (RMS)) (Max) | - | - |
| Voltage - Gate Trigger (Vgt) (Max) | - | - |
| Current - Gate Trigger (Igt) (Max) | - | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 14500A @ 50Hz | 14500A @ 50Hz |
| Current - Hold (Ih) (Max) | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | WC-501 | WC-501 |
