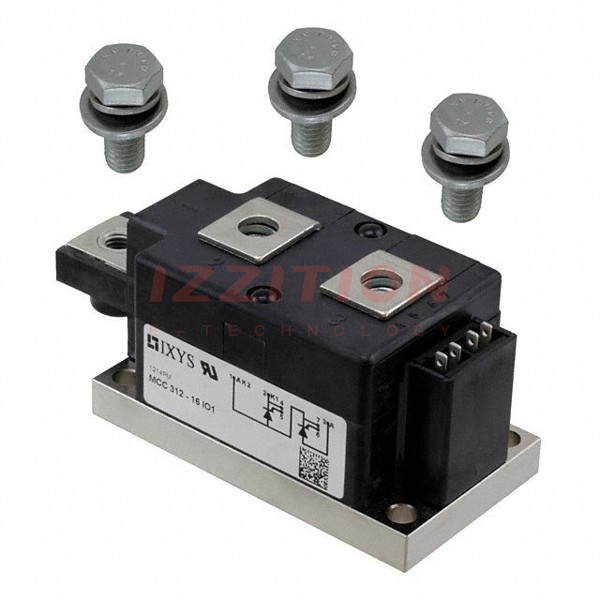

| Part Number | MCC312-16IO1 | MCD312-16IO1 | MCC312-18IO1 | MCC310-16IO1 | MCC312-12IO1 | MCC312-14IO1 |
|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - SCR/Diode | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 1 SCR, 1 Diode | 2 SCRs | 2 SCRs | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.6 kV | 1.8 kV | 1.6 kV | 1.2 kV | 1.4 kV |
| Current - On State (It (AV)) (Max) | 320 A | 320 A | 320 A | 320 A | 320 A | 320 A |
| Current - On State (It (RMS)) (Max) | 520 A | 520 A | 520 A | 500 A | 520 A | 520 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9200A, 10100A | 9200A, 10100A | 9200A, 10100A | 9200A, 9800A | 9200A, 10100A | 9200A, 10100A |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Y1-CU | Y1-CU | Y1-CU | Y2-DCB | Y1-CU | Y1-CU |
