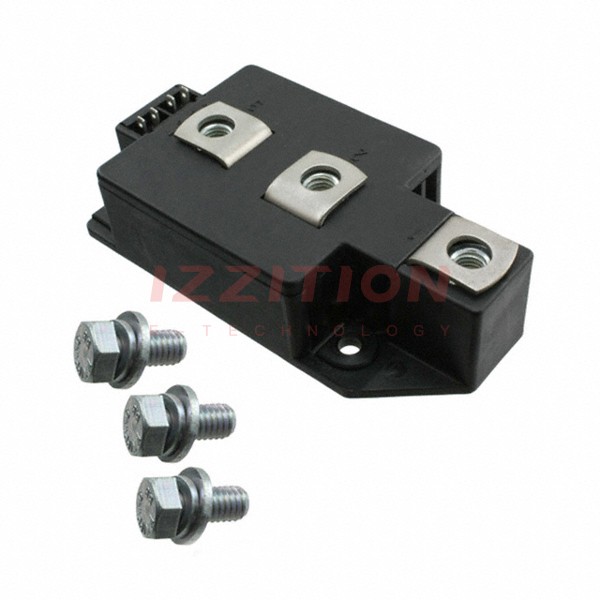

| Part Number | MCC250-16IO1 | MCC255-16IO1 | MCC250-18IO1 | MCD250-16IO1 | MCC200-16IO1 | MCC220-16IO1 | MCC250-14IO1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete | Obsolete |
| Structure | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - SCR/Diode | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs | 2 SCRs | 1 SCR, 1 Diode | 2 SCRs | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.6 kV | 1.8 kV | 1.6 kV | 1.6 kV | 1.6 kV | 1.4 kV |
| Current - On State (It (AV)) (Max) | 287 A | 250 A | 287 A | 287 A | 216 A | 250 A | 287 A |
| Current - On State (It (RMS)) (Max) | 450 A | 450 A | 450 A | 450 A | 340 A | 400 A | 450 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9000A, 9600A | 9000A, 9600A | 9000A, 9600A | 9000A, 9600A | 8000A, 8600A | 8500A, 9000A | 9000A, 9600A |
| Current - Hold (Ih) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Operating Temperature | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 140°C (TJ) | -40°C ~ 140°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Y2-DCB | Y1-CU | Y2-DCB | Y2-DCB | Y4-M6 | Y2-DCB | Y2-DCB |
