Please send RFQ , we will respond immediately.

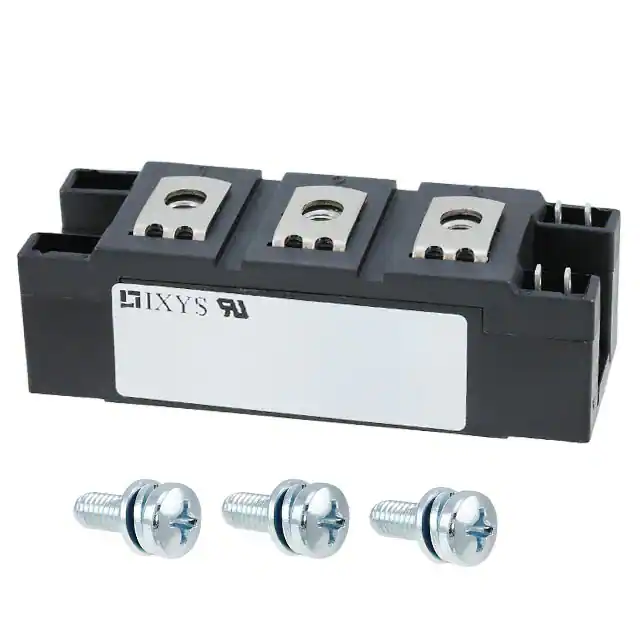

| Part Number | MCC162-16IO1B | MCC162-18IO1B | MCC132-16IO1B | MCC162-14IO1B | MCC162-16IO1 |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active |
| Structure | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs | 2 SCRs | 2 SCRs | 2 SCRs | 2 SCRs |
| Voltage - Off State | 1.6 kV | 1.8 kV | 1.6 kV | 1.4 kV | 1.6 kV |
| Current - On State (It (AV)) (Max) | 181 A | 181 A | 130 A | 181 A | 190 A |
| Current - On State (It (RMS)) (Max) | 300 A | 300 A | 300 A | 300 A | 300 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V | 2.5 V | 2.5 V | 2.5 V | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 6000A, 6480A | 6000A, 6480A | 4750A, 5130A | 6000A, 6480A | 6000A, 6400A |
| Current - Hold (Ih) (Max) | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Y4-M6 | Y4-M6 | Y4-M6 | Y4-M6 | Y4-M6 |
