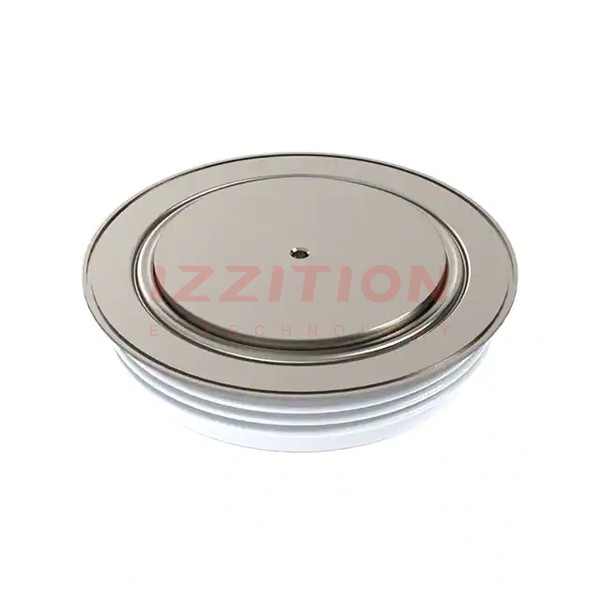

| Part Number | M2325HA450 | M2325HA400 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 4500 V | 4000 V |
| Current - Average Rectified (Io) | 2325A | 2325A |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 2500 A | 2.6 V @ 2500 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5.4 µs | 5.4 µs |
| Current - Reverse Leakage @ Vr | 150 mA @ 4500 V | 150 mA @ 4000 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | DO-200AD | DO-200AD |
| Supplier Device Package | W121 | W121 |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C |
