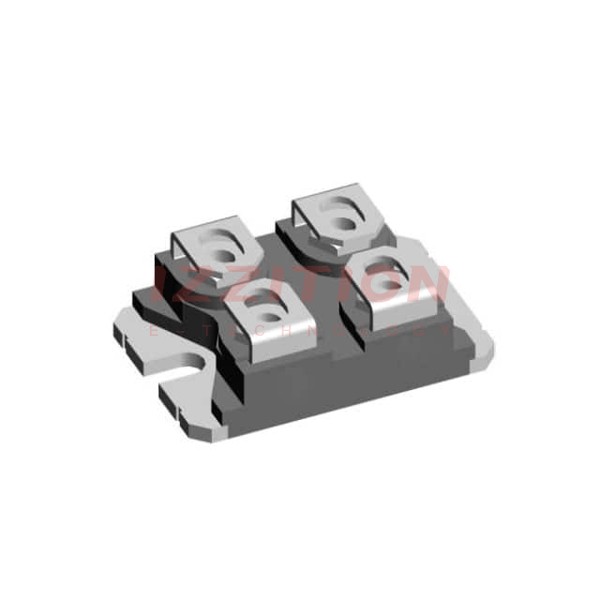

| Part Number | LSIC2SD120N80PA | LSIC2SD120N40PA |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| Diode Configuration | 2 Independent | 2 Independent |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V |
| Current - Average Rectified (Io) (per Diode) | 75A (DC) | 42A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 40 A | 1.8 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V | 100 µA @ 1200 V |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B | SOT-227B |
