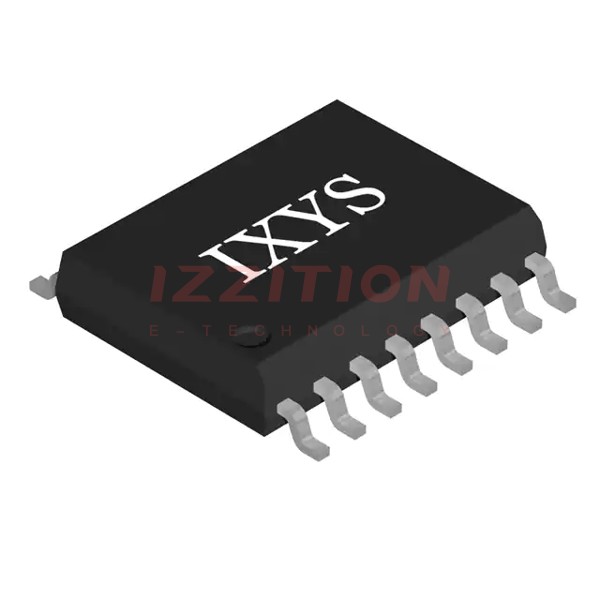

| Part Number | LF2110BTR | LF2113BTR |
|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent |
| Number of Drivers | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 5V, 9.5V | 5V, 9.5V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A | 2.5A, 2.5A |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 500 V | 600 V |
| Rise / Fall Time (Typ) | 15ns, 13ns | 15ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC | 16-SOIC |
