LDA101S
  • Share:

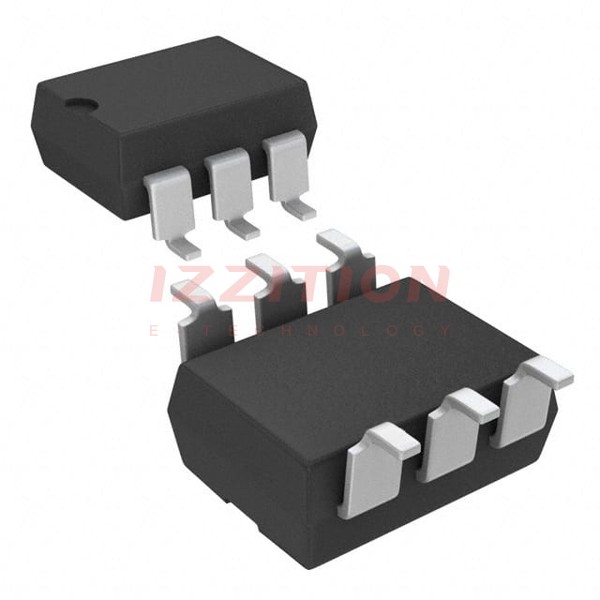

IXYS Integrated Circuits Division LDA101S

Manufacturer No:
LDA101S
Manufacturer:
IXYS Integrated Circuits Division
Package:
Tube
Datasheet:
LDA101S Datasheet
ECAD Model:
-
Description:
OPTOISO 3.75KV TRANS W/BASE 6SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:3750Vrms
Current Transfer Ratio (Min):33% @ 1mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):7µs, 20µs
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):30V
Current - Output / Channel:-
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):1 mA
Vce Saturation (Max):500mV
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-SMD, Gull Wing
Supplier Device Package:6-SMD
0 Remaining View Similar

In Stock

$0.58
792

Please send RFQ , we will respond immediately.
