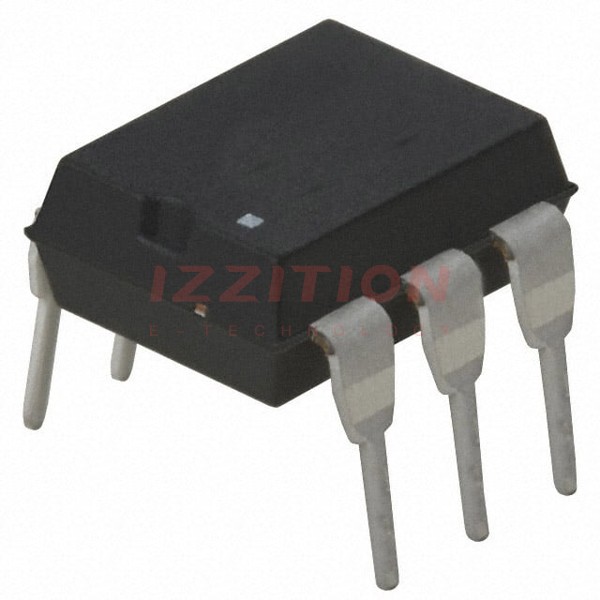

LDA101 Image
×
Favorite
Compare
Add to RFQ
Share:
IXYS Integrated Circuits Division LDA101
Manufacturer No:
LDA101
Manufacturer:
IXYS Integrated Circuits Division
Package:
Tube
Datasheet:
LDA101 Datasheet
ECAD Model:
-
Description:
OPTOISO 3.75KV TRANS W/BASE 6DIP
Delivery:
Payment:
Product Attributes
Number of Channels:
1
Voltage - Isolation:
3750Vrms
Current Transfer Ratio (Min):
33% @ 1mA
Current Transfer Ratio (Max):
-
Turn On / Turn Off Time (Typ):
7µs, 20µs
Rise / Fall Time (Typ):
-
Input Type:
DC
Output Type:
Transistor with Base
Voltage - Output (Max):
30V
Current - Output / Channel:
-
Voltage - Forward (Vf) (Typ):
1.2V
Current - DC Forward (If) (Max):
1 mA
Vce Saturation (Max):
500mV
Operating Temperature:
-40°C ~ 85°C
Mounting Type:
Through Hole
Package / Case:
6-DIP (0.300", 7.62mm)
Supplier Device Package:
6-DIP
0
Remaining
View Similar
In Stock
UnitPrice:
$1.25
Quantity:
285
