IXYS-IXYX40N250CHV - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	2500 V
Current - Collector (Ic) (Max):	70 A
Current - Collector Pulsed (Icm):	380 A
Vce(on) (Max) @ Vge, Ic:	4V @ 15V, 40A
Power - Max:	1500 W
Switching Energy:	11.7mJ (on), 6.9mJ (off)
Input Type:	Standard
Gate Charge:	270 nC
Td (on/off) @ 25°C:	21ns/200ns
Test Condition:	1250V, 40A, 1Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3 Variant
Supplier Device Package:	TO-247PLUS-HV

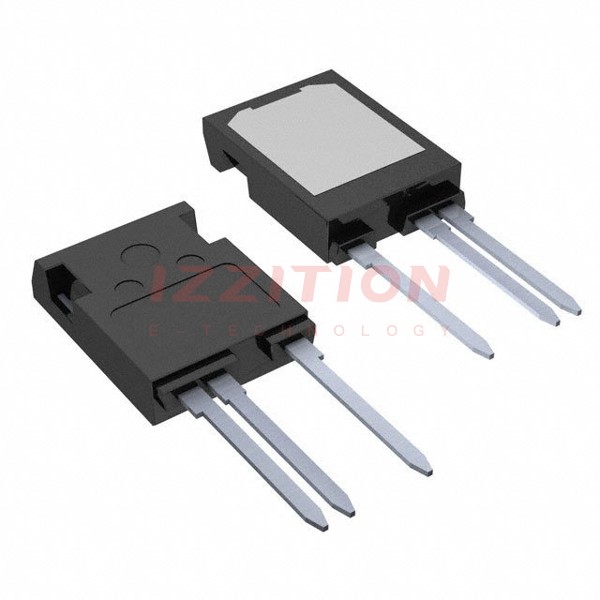

IXYS IXYX40N250CHV
