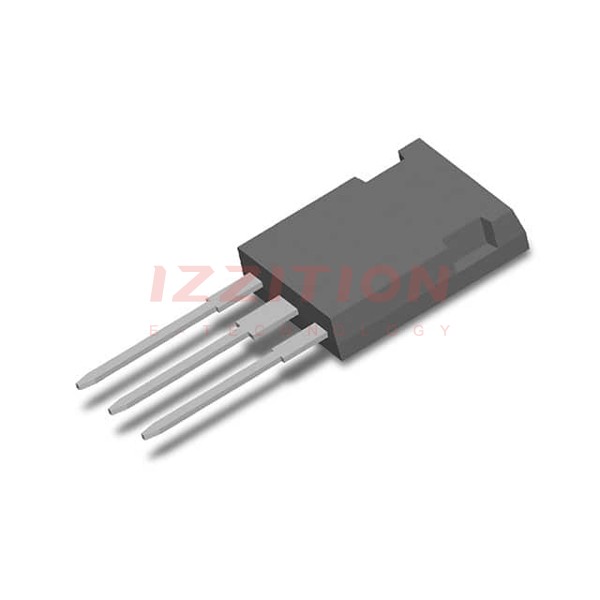

| Part Number | IXYX140N120A4 | IXYK140N120A4 | IXYX110N120A4 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 480 A | 480 A | 375 A |
| Current - Collector Pulsed (Icm) | 1200 A | 1200 A | 900 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 140A | 1.7V @ 15V, 140A | 1.8V @ 15V, 110A |
| Power - Max | 1500 W | 1500 W | 1360 W |
| Switching Energy | 4.9mJ (on), 12mJ (off) | 4.9mJ (on), 12mJ (off) | 2.5mJ (on), 8.4mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 420 nC | 420 nC | 305 nC |
| Td (on/off) @ 25°C | 52ns/590ns | 52ns/590ns | 42ns/550ns |
| Test Condition | 600V, 70A, 1.5Ohm, 15V | 600V, 70A, 1.5Ohm, 15V | 600V, 50A, 1.5Ohm, 15V |
| Reverse Recovery Time (trr) | 47 ns | 47 ns | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 Variant | TO-264-3, TO-264AA | TO-247-3 |
| Supplier Device Package | PLUS247™-3 | TO-264 (IXYK) | TO-247 (IXTH) |
