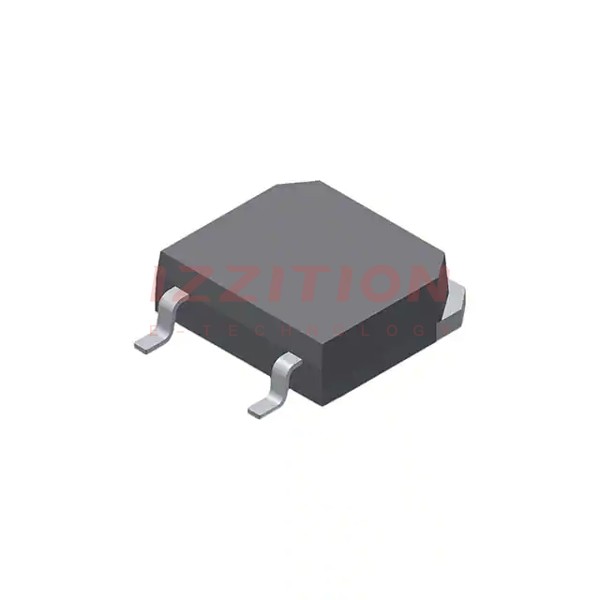

| Part Number | IXYT55N120A4HV | IXYT85N120A4HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 175 A | 300 A |
| Current - Collector Pulsed (Icm) | 350 A | 520 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 55A | 1.8V @ 15V, 85A |
| Power - Max | 650 W | 1150 W |
| Switching Energy | 2.3mJ (on), 5.3mJ (off) | 4.9mJ (on), 8.3mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 110 nC | 200 nC |
| Td (on/off) @ 25°C | 23ns/300ns | 40ns/400ns |
| Test Condition | 600V, 40A, 5Ohm, 15V | 600V, 60A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 35 ns | 40 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268HV (IXYT) | TO-268HV (IXYT) |
